Network Orbiter
Product Portfolio
High-performance wireless hardware and networking solutions for WISPs, carriers, and enterprise networks.
High-Performance Wireless Systems
Form the backbone for everything from last-mile subscriber access to long-range backhauling between network nodes.
ORBITER XB Series
Next-generation point-to-point solutions with throughput up to 2.1 Gbps.
2.1 Gbps Throughput
Groundbreaking wireless performance in 160 MHz channels
Integrated Router
Built-in router eliminates need for separate SOHO equipment
QAM1024 Modulation
Expanded coding schemes for high-interference environments
Built-in Security
Firewall, MAC/IP filtering, and SSH access included
ORBITER XB Series Technical Specifications
Advanced Radio & Networking Features
- SU-MIMO 2x2 with Polling duplex method
- Automatic Bitrate Control & Transmit Power Control
- Voice/RTP Aware Superpacketing for VoIP
- Built-in spectrum analyzer & DFS/Radar detection
- Ethernet-over-IP and IP-over-IP tunneling
- Full L2 switch and L2/L3 firewall
Orbiter NXG Series
Flexible devices for PTP and PTMP deployments with up to 800 Mbps aggregate throughput.
NXG5 Base Station Sectors
Base Station Models
NXG5 & NXG6 Subscriber Terminals
Subscriber Terminal Models
Orbiter O4 & O5 Series
Purpose-built for extreme long-range PTP links, delivering reliable high-capacity backhaul over 200+ km.
O-Series Model Comparison
Key Technological Advantages
- Instant DFS: Hitless channel changes with background spectrum monitoring
- Automatic Bitrate Control (ABC) for dynamic optimization
- Integrated full-fledged L2 switch for transparent Ethernet transport
- 8 priority queues with IEEE 802.1p and IP DiffServ support
High-Performance Antennas
A comprehensive collection of high-gain dish, mesh, and omni-directional antennas designed to support a wide array of deployment scenarios.
Parabolic Dish & Mesh Antennas
High-gain, highly directional antennas ideal for Point-to-Point connections and long-range backhaul.
Antenna Specifications
Omni-directional & Specialized Antennas
Coverage for PTMP base station deployments and radio-specific compatibility.
OANT-O13D
Omni-directional Antenna
4.9-5.8 GHz 13 dBi Omni Antenna Connectorized. Optimized for PTMP Applications.
- 360° horizontal coverage
- 13 dBi high gain
- MIMO & Dual Slant
OANT30-6SD-X
Mimosa Compatible
4.9-6.5 GHz 60cm Mimo Dish with 30 dBi High Gain.
- Twist-on Connector
- Compatible with Mimosa B5x/B6x
- Dual Slant (V/H or ±45°)
OANT34-6MH-X
Mimosa Compatible
4.9-6.5 GHz 3-foot Mesh Dish with 34 dBi High Gain.
- Modular Twist-on
- Compatible with Mimosa C5x/B5x
- Lightweight Mesh Design

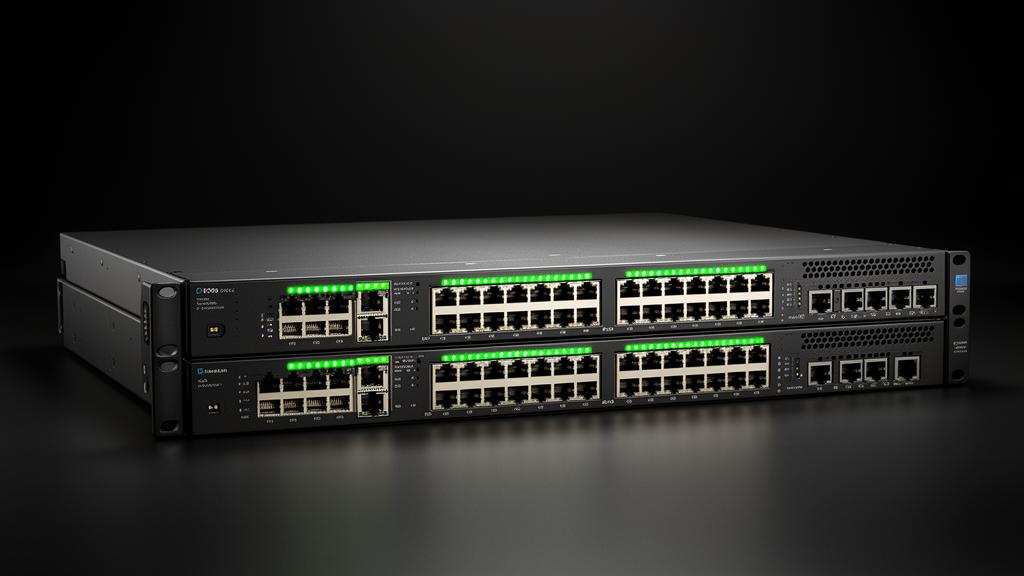

Network Switches
Versatile switching devices with PoE and SFP connectivity for aggregation, distribution, and backhaul.
Managed PoE Switches (OS-MP Series)
Intelligent carrier-level switches based on the TROS™ platform for IP MAN and enterprise networks.
Managed Switch Portfolio
Advanced Carrier-Grade Features
- TROS™ Platform: Intelligent PoE management & ZTP
- Reliability: <50ms Ring protection (ERPS), LACP, STP/RSTP
- Security: DDoS prevention, 802.1x, Port binding, ACL (L2-L7)
- QoS: Carrier-level policies with SP, WRR, and SP+WRR algorithms
- Management: CLI, Web, SSH, SNMP, Zero Touch Provisioning
- Efficiency: Intelligent PoE+ (802.3af/at) with power scheduling
Specialized Power Equipment
Solar-ready switching and high-efficiency power management for remote site deployments.
Solar PoE Switch
Direct 12V solar input support with mixed PoE outputs (60W/30W/Passive).
- 1x 60W PoE, 2x 30W PoE
- 2x 48V/24V Auto PoE
- 1x Uplink SFP
- Solar Panel Input (<30V)

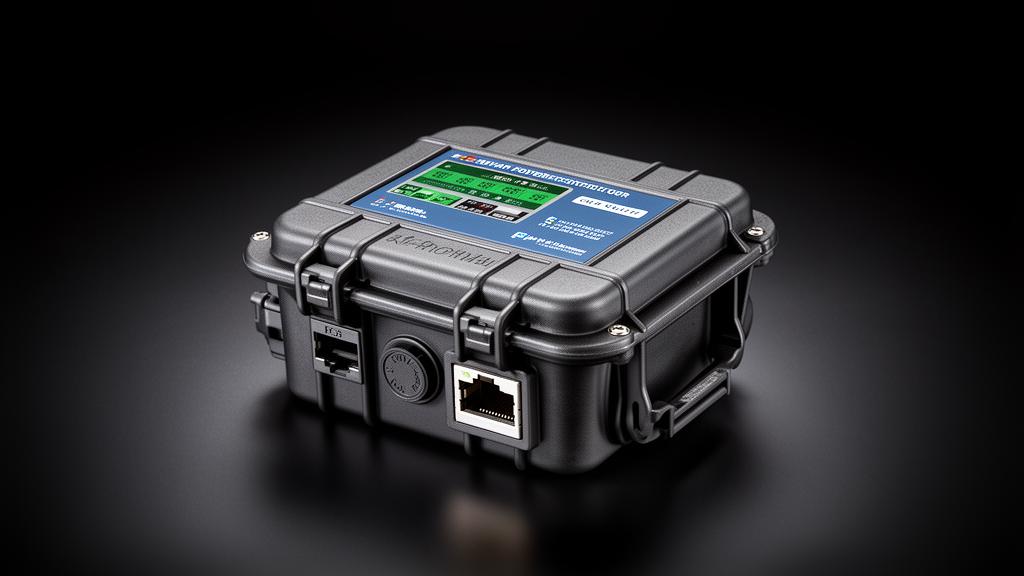

Smart Solar Controller
24/7 continuous power management for CCTV and Telecom sites.
- Lead Acid/Li-Ion Sync
- 48 VDC, 30W Ethernet output
- AC Grid & Solar Charging
- Low leakage current <1mA
Power Solutions
PoE injectors and power supplies to reliably energize your wireless radios and network devices.
PoE Injectors & Power Modules
High-reliability power injection for wireless radios and network equipment.
PAS-ADC-48-21-1G
Universal PoE Injector
Single port PoE injector providing 48V, 21W Rated Power output.
- 90-300 VAC or 36-72 VDC Input
- 10/100/1000 Mbps connectivity
- Short circuit & Overload protection
OPOE-60W
High-Power Injector
Industrial grade 60W PoE++ for demanding high-capacity backhaul units.
- IEEE 802.3bt compliant
- Gigabit data rates
- Surge protection built-in
OPOE-90W
Ultra-Power Injector
90W power delivery for specialized heavy-duty network appliances.
- Up to 90W DC output
- Dual-stage protection
- LED status indicators
Power Supply Specifications
DC power options for carrier-grade deployments.
DC Power Supplies
Software Tools
Proprietary monitoring systems and specialized software functions integrated into the networking hardware.
Network Management Systems
Centralized control and visibility for your entire network infrastructure.
EMS NEXT
Element Management System
A comprehensive monitoring and management platform for Network Orbiter devices.
- Real-time performance monitoring
- Centralized configuration management
- Fault detection & alerting
- Batch firmware updates
TROS™ Platform
Switch Operating System
Advanced software platform powering the OS-MP series switches.
- Zero Touch Provisioning (ZTP)
- Carrier-level QoS algorithms
- L2-L7 security mechanisms
- ERPS Ring protection (<50ms)
